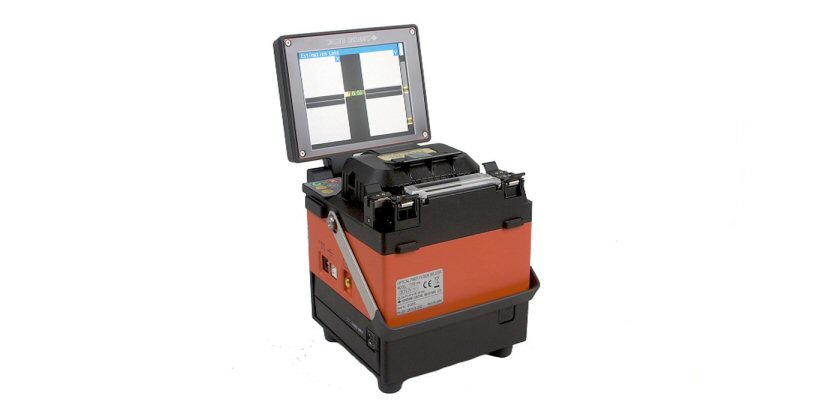

Type-25eDTS Handheld Splicers
PN#:
Type-25eDTS
MSRP: CALL FOR PRICING
Availability: 8-10 days
MSRP: CALL FOR PRICING
Availability: 8-10 days
- Specifically Designed for Tactical Optical Fiber Cable Applications
-
Perfect for the Network Applications of the Military, Broadcasting, and Other Sectors for which Mission Critical Speed, Reliability, Quick Restorations, and Performance
are Paramount - Splices Two 900μm Fibers Simultaneously, Whether Two Single-mode; Two Multimode; or Single-mode—Multimode Fibers
- Dual Fixed V-Groove
- Dual Camera Splice Loss Estimation
- 60 Splice & Heat Shrinks per Battery Charge
- Multiple Language Options Including Spanish
- User-Friendly Menu Selection System
- Built-in Battery Charger
- AC Adapter Incorporated within Unit
- Automatic Arc Test Function
- Unified Electrodes for Type-25e/Type-66/Type-39
- Lynx2 CustomFit® Splice-On Connector Compatible
- 24-Hour Technical Support via 888-SPLICER
Applications: CATV/Telecom/LAN/WAN/Data Centers/Medical/Military/Wireless/Broadband
| ROHS | Compliant (engineered to be more environmentally friendly) | ||
| Alignment Method | Dual Fixed V-Groove | ||
| Applicable Fiber Types | SM, MM, DSF, NZ-DSF, BIF / UBIF | ||
| Fiber Count | 1 or 2 | ||
| Fiber Placement |
DTS Fiber Holder System
Single Fiber Holders also Available |
||
| Cladding Diameter | 125µ | ||
|
Typical Splice Loss
Identical Fibers |
SMF: 0.04dB
MMF: 0.02dB |
||
| Typical Heaters Cycle | 45 Seconds | ||
| Typical Splice Time | 10 Seconds | ||
| Battery Operation | 60 Splice & Heat Shrink Cycles per Charge | ||
| Arc Test |
Automatically Compensates for
Environmental Conditions |
||
| External Interface |
12 Volt DC Output for Accessories
USB Port for Quick PC Transfers |
||
| Internal Splice Data Storage | 1500 | ||
| Lynx2 CustomFit® Splice-On Connector | Compatible | ||
| Powering Options |
Internal Battery Charger
Internal AC Adapter |
||
