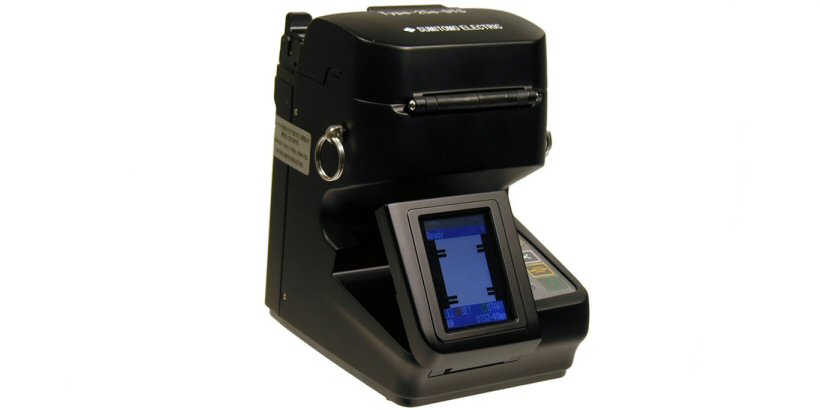

Type-39 FastCat® Dual-Heater Core Alignment Fusion Splicer
PN#:
TYPE-39-KIT-1
MSRP: CALL FOR PRICING
Availability: 8-10 days
MSRP: CALL FOR PRICING
Availability: 8-10 days
- Dual Independent Splice Protection Heaters, Increasing Splicing Efficiency by 70% and Making the Type-39 FastCat, with the Exception of Sumitomo’s Quantum, the Fastest Splicer Available Today
- HDCM (High Resolution Direct Core Monitoring)Technology for Repeatable Low-Loss Splices
- RoHS Compliant
- 5.6” Switchable Color Monitor for Front to Back or Back to Front Operation
- Automatic Splice and Heater Start
- Automatic Fiber Profiling Detection
- Complete Splice in Less than 40 Seconds
- Built-In LED for V-Groove Illumination
- User-Friendly Menu Selection System
- 24-Hour Technical Support via 888-SPLICER
Applications: CATV/Telecom/LAN/WAN/Data Centers/Medical/Military/Wireless/Broadband
| ROHS | Compliant (engineered to be more environmentally friendly) |
| Fiber Requirement | Silica Glass |
| Coating Diameter | 250 and 900µm |
| Cladding Diameter | 80 to 150μm |
| Cleave Length | 10mm |
|
Typical Splice Loss,
Identical Fibers |
SMF: 0.02dB
MMF: 0.01dB NZ-DSF: 0.04dB |
| Number of Fiber Profiles | 48 Customizable |
|
Number of Pre-Installed
Heater Profiles |
20 Customizable |
| Internal Splice Data Storage | 10,000 |
| Monitor Position | Multiple Position Monitor |
| Interface |
USB Port for PC Interface
RCA Jack for External Monitor DC input for Car Battery Operation |
| Dual Independent Heaters |
Each Heater: 25 seconds 40mm sleeve
30 seconds 60mm sleeve |
| Typical Splice Time | 9 Seconds Splice Cycle Time |
| Language Selections | 16 |
| Arc Test | Automatically Compensates for Environmental Conditions |
| Menu Selection | User Friendly Menus |
| Return Loss | <-70dB |
| Proof Test | Internal 200g (Std.), 400g (Optional) |
| Attenuation Splicing | Up to 15dB in increments of 0.01db |
| Loss Estimation Process | High-resolution Direct Core Monitoring (HDCM) |
| Image Display | Dual or Single Fiber Imaging X/Y |
